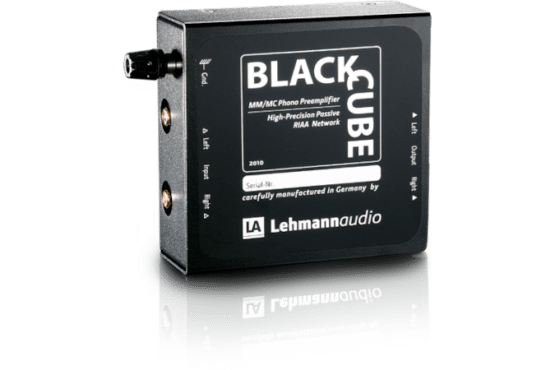

Lehmann Audio – Black Cube (Phono Preamp)

Rs.86,900

Black Cube
Sensitivity for output level 775 mV/ 0 dB (with activated high gain jumper)

Gain 1 kHz

Maximum input level 1 kHz

Signal to noise ratio (RMS unweighted) MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz

MM: 46 dB; MC: 66 dB

MM: 45 mV; MC: 4,5 mV

MM: 71 dB; MC: 63 dB

Gain 36 dB, 46 dB, 56 dB, 66 dB
Channel separation > 85 dB at 10 kHz
Input impedance 47 kohms, 1 kohm, 100 ohms
1 x custom load
1 x hardwire slot
Output impedance 47 ohms
Input capacitance 100 pF
Channel mismatch typ. 0.5 dB
Bass filter 50 Hz, 6 dB/oct.
Power consumption < 3 W Outer dimensions W x D x H Audio section: 113 mm x 108 mm x 45 mm Power supply: 70 mm x 115 mm x 55 mm Weight Audio section incl. cable to power supply: 0.4 kg netto Power supply: 0.3 kg netto

In stock

Categories: ,

Description

The Black Cube is the classic among the phono preamps: since its product launch in 1995 it has enjoyed cult status with a vast number of record lovers, causing a sensation in the specialised press with its compact dimensions and marvellous sound. Since 2006 the audio pc board has been on the market in a new and greatly improved version.

Can you still remember what it was like to put on your favourite LP for the first time? Which detail cast a spell over you and even today is still fascinating? The Black Cube enables a new encounter with beloved music classics: owing to its excellent components and sophisticated circuit design, the sound is faithfully reproduced and with plenty of ardour, despite its tiny dimensions.

“I don’t know of anything at or near the price, that sounds this good.”

— Michael Fremer, Stereophile
A wide range of tonal shades and its downright explosive dynamics are typical features of the Black Cube. These are due to the high-precision passive RIAA equalisation circuit located between two linear gain stages, which has been realised using low-loss precision MKP foil capacitors. The high-grade input stages of the latest generation ensure a low-noise reproduction; it’s not without reason they are also used in high-quality mixing desks and microphone preamps. The custom-designed power supply provides a large headroom.

1 Nos.

Brand

Lehmann Audio
