Description

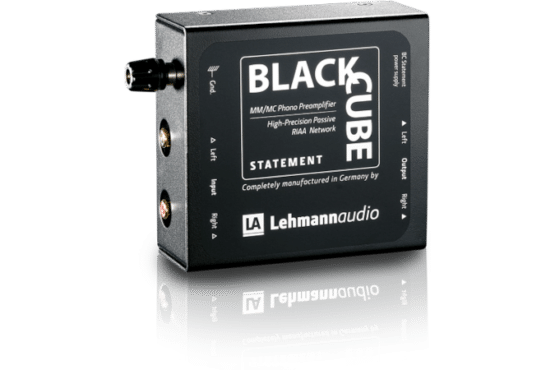

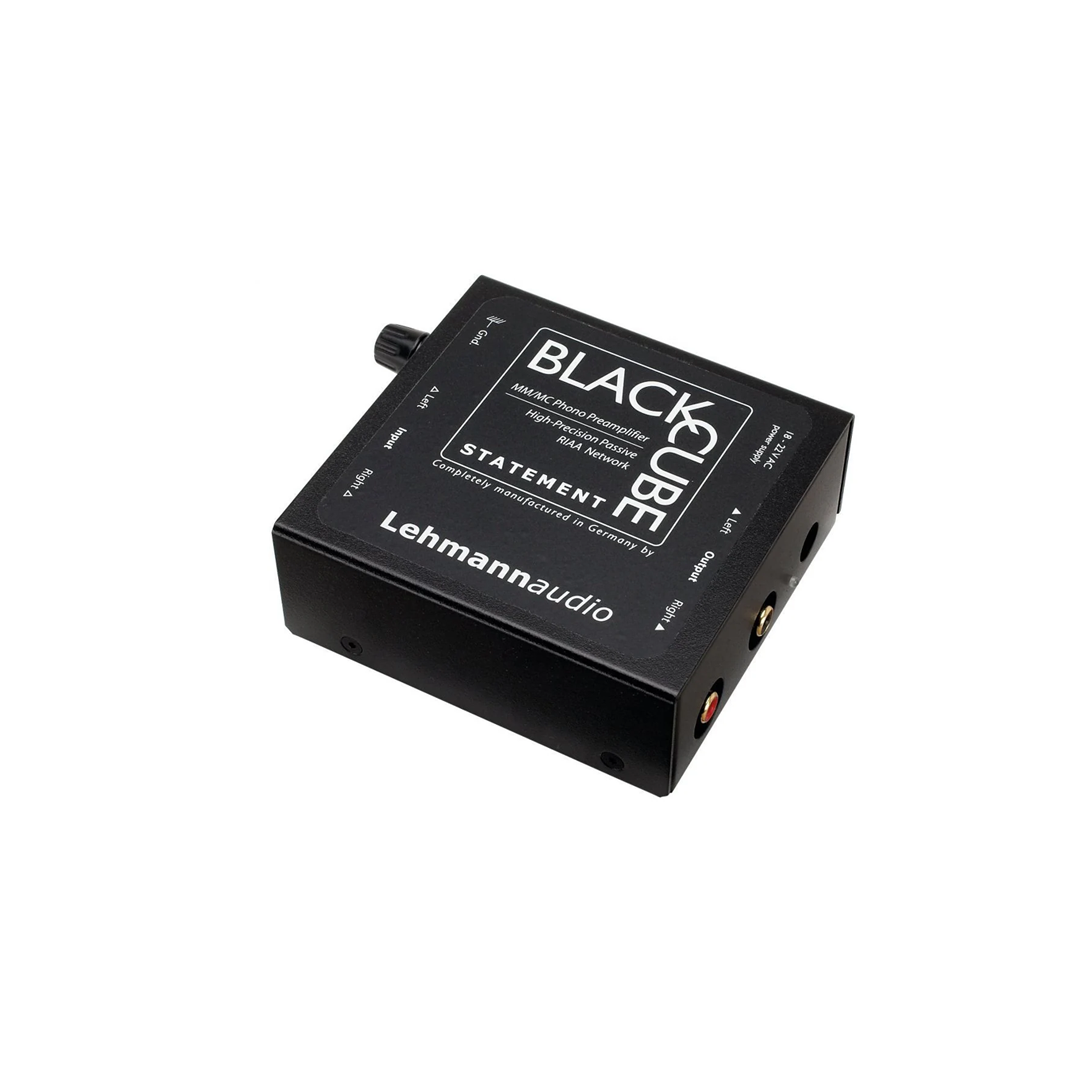

Black Cube Statement
Sensitivity for output level 775 mV/0 dB (with activated high gain jumper)
Gain 1 kHz
Maximum input level
Signal to noise ratio (RMS unweighted) MM: 7.4 mV/1 kHz; MC: 0.74 mV/1 kHz
MM: 41 dB; MC: 61 dB
MM: 58 mV; MC: 5.6 mV
MM: 78 dB; MC: 57 dB
Gain 31 dB, 41 dB, 51 dB, 61 dB
Channel separation > 85 dB at 10 kHz
Input impedance 47 kohms, 1 kohm, 100 ohms
1 x custom load
Output impedance < 100 ohms
Input capacitance 100 pF
Channel mismatch typ. 0.5 dB
Bass filter 50 Hz, 6 dB/oct.
Power consumption app. 1 VA
Outer dimensions W x D x H 103 mm x 108 mm x 45 mm
Weight 0.28 kg netto
