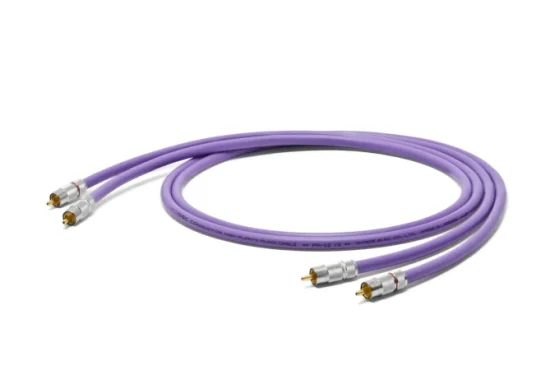

Oyaide PA-02 TR V2 RCA Interconnect Cable (1 mtr)

Patented “3E Stranded” Technology for Twisting Three Different Sizes of Wires Together
The 3E stranded structure is a concentric stranding arrangement of stranded wires in a lump-sum twisted wire conductor, and by arranging three different strand diameters, the stranding arrangement is made denser. By arranging three different strand diameters, the strand arrangement is made denser, enabling a finer conductor structure and improving conductor characteristics.

The strands of these three different conductor diameters are arranged geometrically to minimize the gaps between strands and improve strand density.

Furthermore, the outer diameter of the strands has been downsized to maintain a stable and highly accurate outer diameter, and the cross section after twisting is a perfect circle, an unprecedented conductor structure in the world. This ensures uniform adhesion between the insulator and conductor, eliminating random thickness of the insulation material and making it uniform.

Traditional 2 Core Shielded Cable Construction
A traditional design of 2 core shielded type is adopted for not only audiophiles but also for professional audio use. The two conductors arranged at a uniform pitch are set at 120Ω impedance for analog audio signals. Shield is also made of 102SSC, a precision conductor, and braided shield is made of 24 pairs of 8 conductors of 0.12mm to achieve a braid ratio of 80%.

Halogen-free PE Outer Jacket for Audio Use
The halogen-free PE (Polyethylene) sheath, which is specially designed for audio and complies with the European RoHS Directive, has extremely high vibration damping properties due to its material composition ratio, enabling clear signal transmission.

Furthermore, it also exhibits excellent potential in electrical characteristics, suppressing the increase in relative permittivity in the low frequency range due to the outer packaging and controlling the increase in attenuation. This allows for the reproduction of a fuller low frequency range.

Foamed polypropylene with low dielectric constant is used as the insulation material. The superior vibration control and electrical characteristics of the sheath and insulation material ensure loss-free music reproduction. The sheath is marked “PA-02 V2” and “102SSC.
