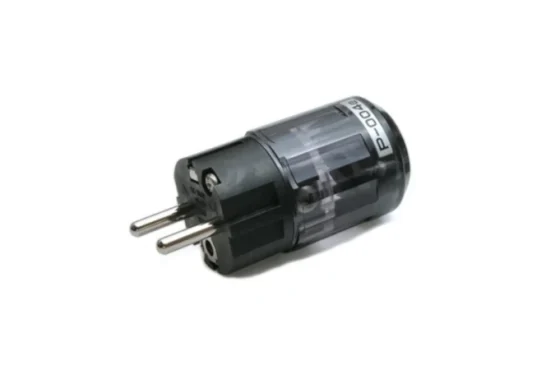

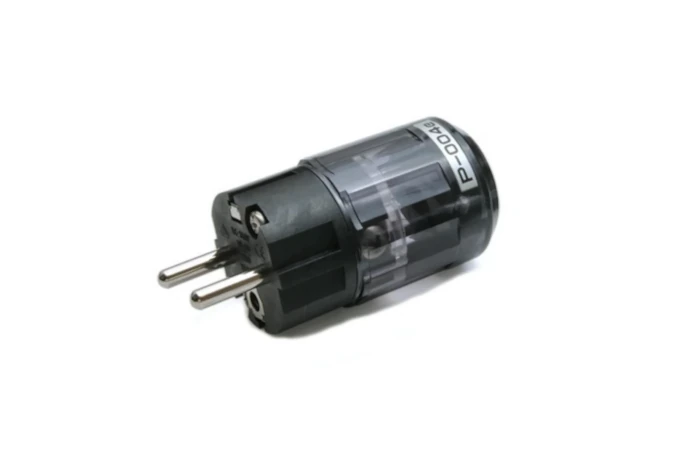

P-004e (Schuko) (Each)
Contacts
The blades of the P/C-004 are made of beryllium copper, which has the same high conductivity and sufficient mechanical properties as those of the M1/F1.
This is an appropriate choice of material for the flagship model. Beryllium copper is an extremely aged alloy that is heat-treated to give it extremely high mechanical properties. This C-004 blade has a high level of contact area and rigidity with a thickness of 1.0 mm and a width of 6.0 mm, and a strong hold with a weighted weight of over 8 kg. This reduces vibration at the joints and achieves lossless transmission.
Plating
The blades of the P/C-004 are plated with the same combination of platinum and palladium as the M1/F1. The first layer of platinum is 0.5μm. and the second layer of palladium is 0.3μ.
Once punched as a part, the material is mechanically barrel polished and then buffed one by one by human hands. There is no other example of this two-stage polishing process being applied to audio equipment. Mirror finish and direct plating. The simplicity of the product is the reason why it must be made to the highest standards. Oyaide’s philosophy and craftsmanship are condensed here as well.
₹34,790
In stock
Product Details
Based on the technology of M1/F1, we have achieved to create P-004/C-004 as its cost-performance by integrating the features of M1/F1 and P/C series.
As well as other P/C series audio plugs, the key parts of P-004/C-004 is composed of the selection of materials, plating technology, and usability.
Inheriting the most core factor of M1/F1, the contacts of P-004/C-004 are made of beryllium copper which insures mechanical integrity and high conductivity. The plating is also same as M1/F1 that is a combination of platinum and palladium which was selected after repeated listening tests.
Brand
Oyaide
