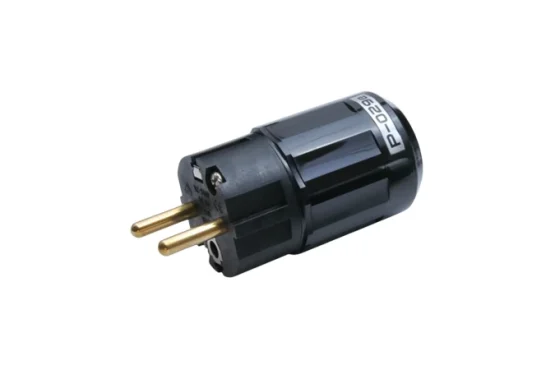

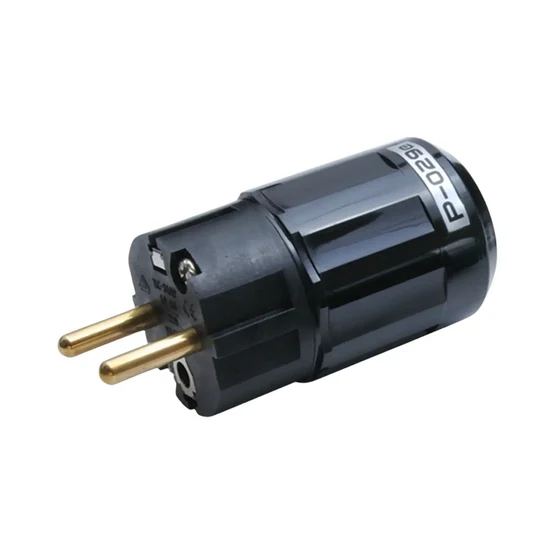

Oyaide P-029e Mains Power Connector Schuko (Each)
The Oyaide P-029e Mains Power Connector is an EU/Schuko power plug with non-plated brass contacts, a 30% glass-filled PBT body, polycarbonate cover, and support for 6.5–17 mm cables.
Every one of our products are totally “made in Japan” even down to minute component, all because for us to maintain our high standard of quality and reliability, it is essential to have every production system under our direct and strict control. Our products are for special market where minute vibration from loose connection or due to imperfect choice of material could become a vital failure.
We carefully design each and every component for easiness in assembling, simplicity and requirement, cost factor is secondary. Instead we ignore excess decoration and unnecessary complexity. We are proud to present the true value for your enjoyment.
₹16,690
Product Details
The Oyaide P-029e Mains Power Connector is the EU/Schuko version of the P/C Series. It uses non-plated brass contacts with a 30% glass-filled PBT body and rigid polycarbonate cover. The Oyaide P-029e supports cables from 6.5–17 mm and conductors up to 5.5 sq mm / 10 AWG. It is rated at 250V/16A CE and is made in Japan.
FEATURES:
- The basic material is pure brass for P-029. Its rigidity makes the contact secure. The blade of P-029 would often be oxidized because of its material nature, pure brass.
When it happens, you need to polish it out frequently by soft cotton cloth. The P-029 doesn't have plating on its contacts. - 30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body of the P-029/C-029 effectively attenuates high-speed vibrations.
- All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.
- The screws of P/C series are all made of highly rigid stainless so its screw head doesn't collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve high S/N ratio without being magnetized at its connection part.
- The outer cover of P/C series is made of PC ( Polycarbonate ) for its rigidity and hardness. It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.

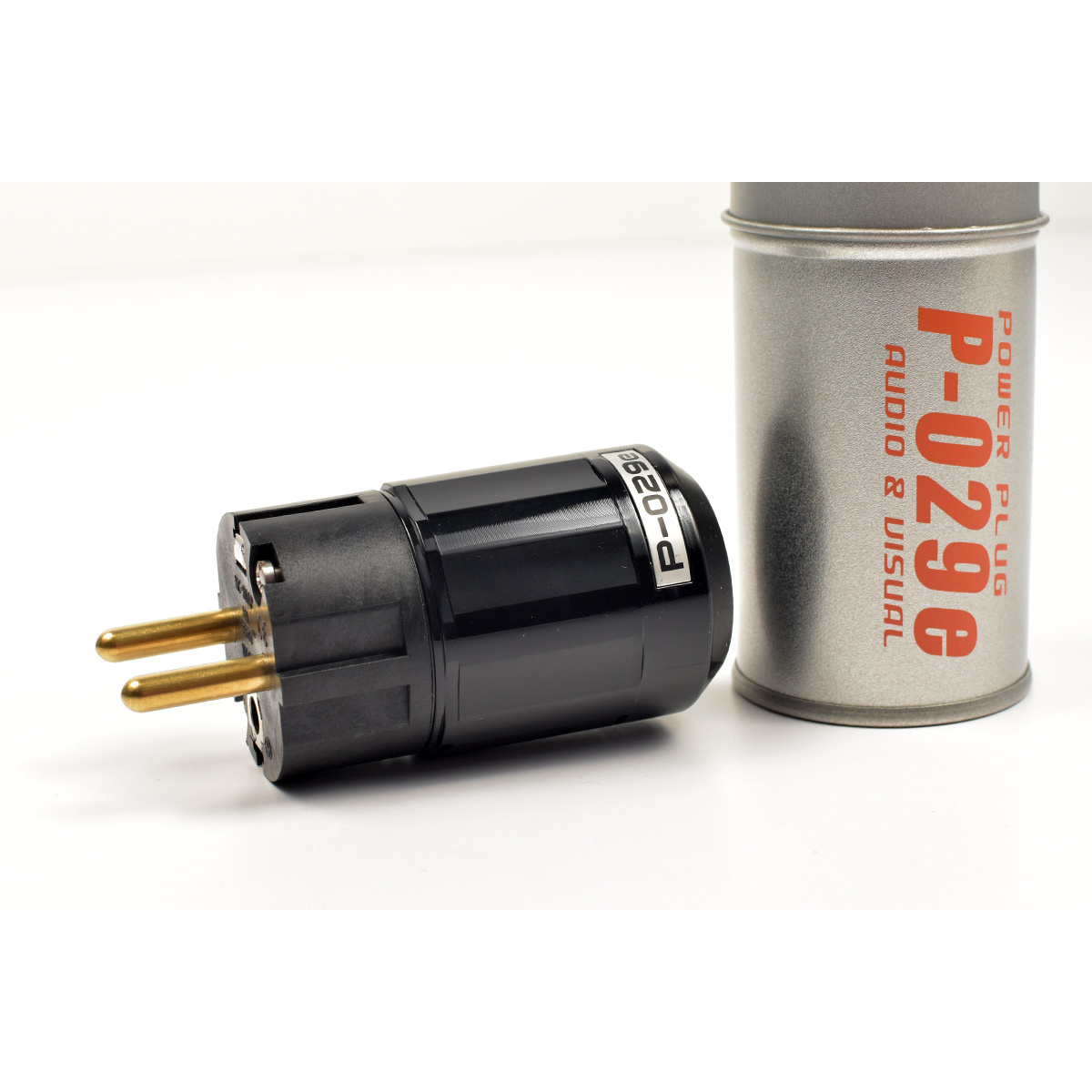

- All Oyaide Electric's P/C series AC plugs and IEC connector are all labeled with a "hologram sticker" with a serial number for management purposes. The product is shipped in its original can case, which protects it from shocks during transportation.
Additional information
| Condition | New |
|---|
Brand
Oyaide
