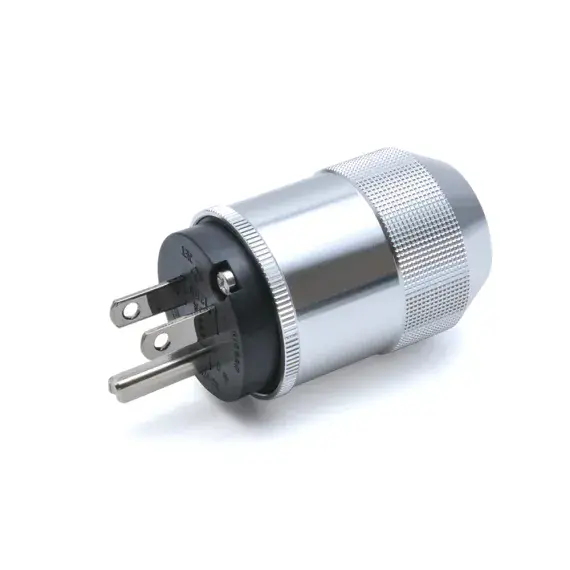

Oyaide M1 Platinum Palladium Plated AC power plug / IEC connector
The Oyaide M1 Platinum Palladium AC Power plug is a premium Japanese audio power plug with heat-treated beryllium copper contacts and platinum-palladium plating. In addition, it uses a rigid POM housing, aluminium monocoque shell and stainless steel screws. It supports up to 10 AWG cable and is rated at 125V/15A.
Technical Specifications —
- Model: Oyaide M1
- Product Type: AC Power plug
- Contact Material: Heat-treated beryllium copper
- Contact Size: 1.0 mm thick × 6.0 mm wide
- Plating: Platinum 0.5 micron + Palladium 0.3 micron
- Inner Housing: POM (Polyacetal resin)
- Outer Shell: Aluminium monocoque shell
- Cable Diameter: 6.5–17 mm
- Maximum Wire Size: 5.5 sq. mm / 10 AWG
- Rated Voltage/Current: 125V / 15A, PSE certified
₹47,290
Product Details
The Oyaide M1 Platinum Palladium AC Power plug is a premium audio power plug designed for high-quality power cable builds. It uses heat-treated beryllium copper contacts with platinum and palladium plating for a strong, stable connection.
Furthermore, the POM inner housing provides electrical isolation and mechanical strength. The aluminium monocoque shell adds rigidity and protection. In addition, the M1 accepts 6.5–17 mm cables and up to 10 AWG wire. It is rated at 125V/15A and made in Japan.
Features:
Original Dual Housing Outer Cover
It is precisely because they are simple that they must be crafted. This is both Oyaide's philosophy and craftsmanship. While each of the components used asserts its own individuality, they work in perfect harmony to make "M1/F1" the ultimate product. The inner housing is made of POM (polyacetal), which has both excellent mechanical properties and electrical insulation properties.
The outer housing is made of 50 series aluminum alloy with well-balanced mechanical properties. The outer housing is made of a 50 series aluminum alloy with well-balanced mechanical properties. These parts are cut by NC machining from a bar with an external diameter of 40 mm, and 80% to 85% of them are disposed of to make a single part. (POM 90g → 20g / Aluminum 190g → 25g) Furthermore, the parts created by the outstanding cutting precision are perfectly aligned. The craftsmanship that is the pride of Japan has been passed down from generation to generation.
Inner Plug Body
The material "M1/F1" body is made of high specific gravity engineering plastic material PBT + 30% GF, which has both excellent mechanical properties and electrical insulation properties. The highly rigid body realizes high-speed vibration damping.
Furthermore, all screws are made of stainless steel and P/C, completely original screws made exclusively for "M1/F1". Highly rigid stainless steel screws will not cause problems such as over-torquing, crushing of threads, or removal of heads. The maximum cable attachment size is 10sq. (5.5sq. x 2 cables), boasting outstanding workability. The tensile strength of the blade holder and cable is more than 30 kg, so even a slight pull will not cause the cable to come loose. This is also the result of careful consideration of safety.
Additional information
| Condition | New |
|---|
Brand
Oyaide
