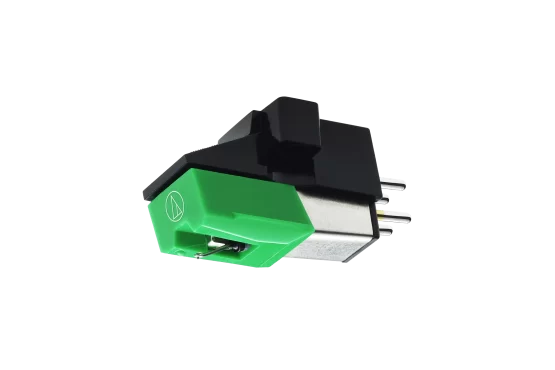

Audio-Technica AT95E Phono Cartridge Details
– Output voltage @ 1kHz,5cm/sec.: 3.5mV
– Channel balance: 2dB
– Channel separation @ 1kHz: 20dB
– Frequency response: 20Hz-20kHz
– Dynamic compliance (x10-6 cm/dyne): 6.5
– Static compliance (x10-6 cm/dyne): 20
– Load resistance: 47k ohms
– Load capacitance: 100 – 200 pF
– Stylus type: 0.4 x 0.7 mil elliptical diamond
– Tracking force range: 1.5 – 2.5 g
– Tracking force recommended: 2 g (20 mN)
– Vertical tracking angle: 20°
– Coil impedance at 1kHz: 2.8k ohms
– Coil inductance at 1kHz: 400 mH
– Recommended load resistance: 47k ohms
– Color: Black/Green
– Weight: 6.5 g
– Dimensions: 30.5L x 17W x 17.20H
