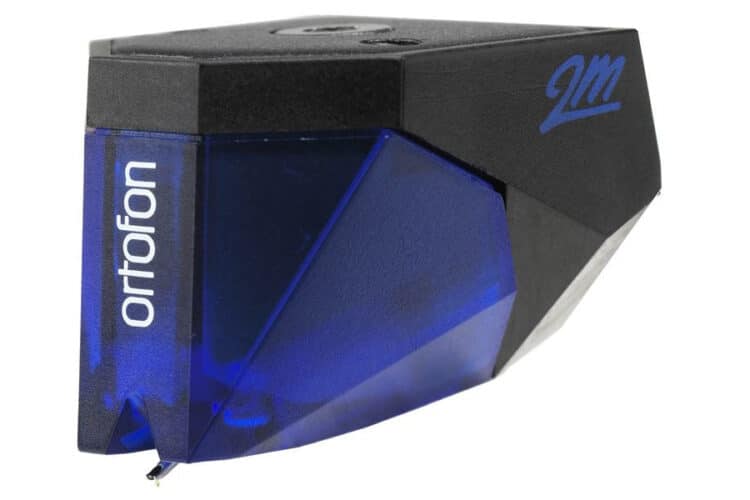

Description
Output voltage at 1000 Hz, 5cm/sec. – 5.5 mV
Channel balance at 1 kHz – 1.5 dB
Channel separation at 1 kHz – 25 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.3 kOhm
Internal inductance – 700 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 150-300 pF
Cartridge colour, body/stylus – Black/Blue
Cartridge weight – 7.2 g
Replacement stylus unit – 2M Blue (interchangeable with 2M Red and 2M Silver)
