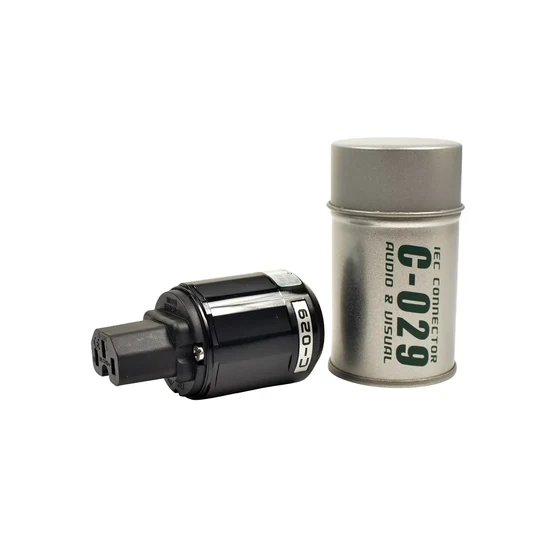

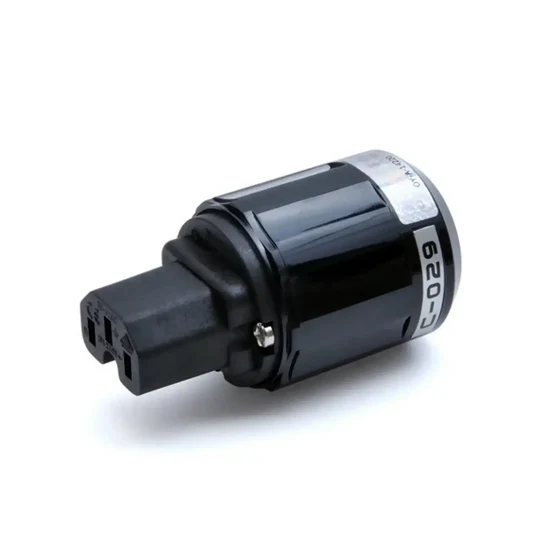

Oyaide C-029 IEC Power Connector
The Oyaide C-029 IEC Power Connector uses unplated brass contacts for a direct, simple design. Its PBT body with 30% glass fiber and polycarbonate cover provide a rigid housing. It supports cables from 6.0 to 16.0 mm and wires up to AWG10 / 5.5 sq mm.
We carefully design each and every component for easiness in assembling, simplicity and requirement, cost factor is secondary. Instead we ignore excess decoration and unnecessary complexity. We are proud to present the true value for your enjoyment.
₹8,790
Product Details
The Oyaide C-029 IEC Power Connector is part of Oyaide’s P/C Series and uses unplated brass contacts. Its main body combines PBT with 30% glass fiber, while the thick polycarbonate cover adds a rigid outer housing. Moreover, the screw-type design supports easy cable assembly. The C-029 accepts cable diameters from 6.0 to 16.0 mm and wires up to AWG10 / 5.5 sq mm. It is rated at 125V/15A and is made in Japan.
Technical Specifications-
- Model: Oyaide C-029
- Type: IEC power connector
- Blade Material: Brass
- Contact Plating: None / unplated
- Main Body: PBT + 30% glass fiber
- Cover: Polycarbonate
- Mounting: Screw type
- Cable Diameter: 6.0–16.0 mm
- Maximum Wire Gauge: AWG10 / 5.5 sq mm
- Rated: 125V / 15A, PSE certified
Additional information
| Condition | New |
|---|
Brand
Oyaide
