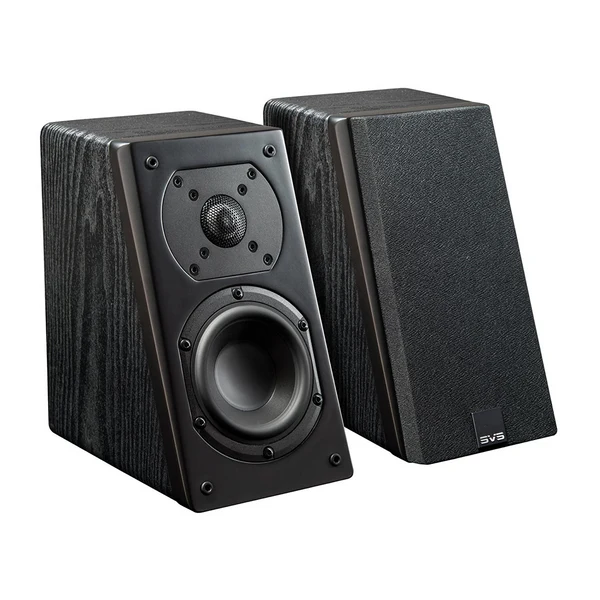

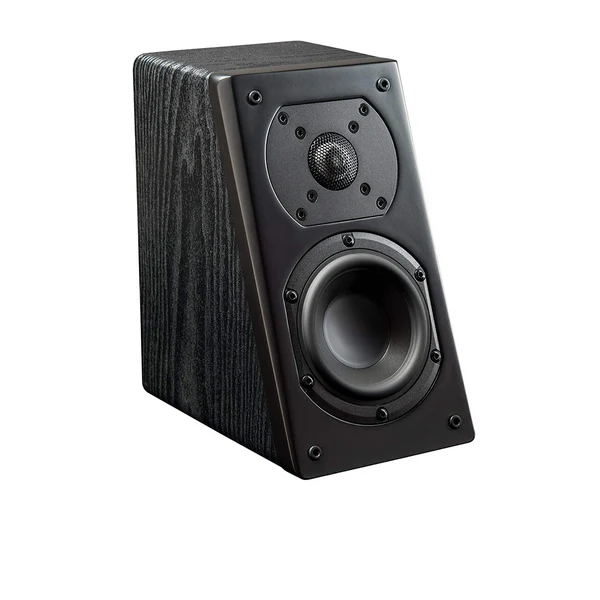

SVS Prime Elevation Speaker (Pair)
The SVS Prime Elevation Speaker delivers immersive Dolby Atmos and surround sound with a 1-inch aluminum tweeter and 4.5-inch midrange driver. Moreover, its angled cabinet and flexible wall or ceiling mounting make it ideal for versatile home theater setups.
Technical Specifications:
- Product Type: 2-Way Height / Surround Speaker
- Tweeter: 1-inch aluminum dome
- Midrange Driver: 4.5-inch polypropylene cone
- Woofer: N/A
- Crossover: 2-way crossover
- Crossover Frequency: 2.5kHz
- Frequency Response: 55Hz–25kHz ±3dB
- Nominal Impedance: 8 ohms
- Sensitivity: 87dB
- Recommended Amplifier Power: 20–150W
- Port: 1-inch wide-flared rear-firing port
- Cabinet Dimensions: 9.25″ H × 5.44″ W × 7.88″ D
- Weight: 7.8 lb / 3.54kg
- Finish Options: Premium Black Ash, Piano Gloss Black, Piano Gloss White
- Mounting: SVS Multi-Angle Wall Bracket with four-position mounting
₹95,000
Product Details
The SVS Prime Elevation Speaker brings immersive, three-dimensional sound to home theaters. Its 1-inch aluminum dome tweeter and 4.5-inch midrange driver deliver clear, dynamic audio across a wide frequency range. In addition, the angled front baffle directs sound precisely toward the listening area.

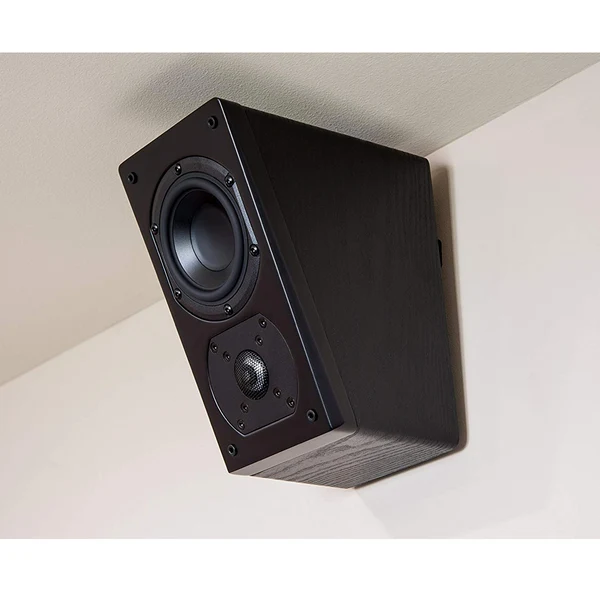

The included Multi-Angle Wall Bracket supports flexible wall and ceiling placement, while the speaker can work as a Dolby Atmos height, surround, rear, center, or LCR speaker. Therefore, it is an excellent choice for flexible home theater installations.
Frequency Response / Acoustic Data:
- Rated bandwidth: 55 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
Speaker Specs:
- Black Ash, Piano Gloss Black and Piano Gloss White finish options
- Single set of 5-way binding posts
- 1” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Magnetic SVS Logo which can be removed and oriented according to speaker application.
- Elastomer stick-on bumper feet (adds 3mm to height)

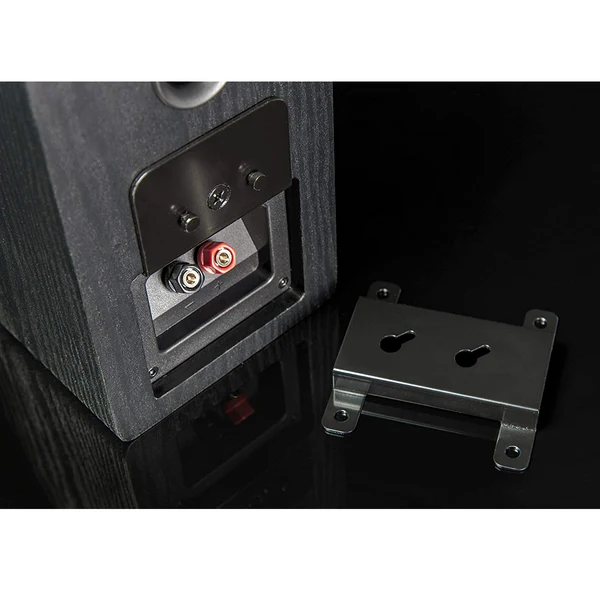

- Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
- 1/4 brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
- Cabinet Dimensions: 9.25" (H) X 5.44" (W) X 7.88" (D)
- Overall Dimensions: 9.4" (H) X 5.44" (W) X 8.33" (D) (includes grille, binding posts and bumper feet)
- Overall Dimensions: 9.25" (H) X 5.44" (W) X 8.98" (D) (includes grille and SVS Multi-Angle Wall Bracket)
- Shipped Dimensions: 9.30" (H) X 12" (W) X 18" (D)
- Weight Unboxed: 7.8 pounds
- Shipped Weight: 20 pounds
Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
4.5” Midrange Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts.
Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover network delivers outstanding phase coherency and time domain behavior
- Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)
Cabinet:
- Acoustically transparent and FEA optimized grilles minimize diffraction
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
- FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
- Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
Additional information
| Condition | New |
|---|---|
| Finish | Black Ash |
