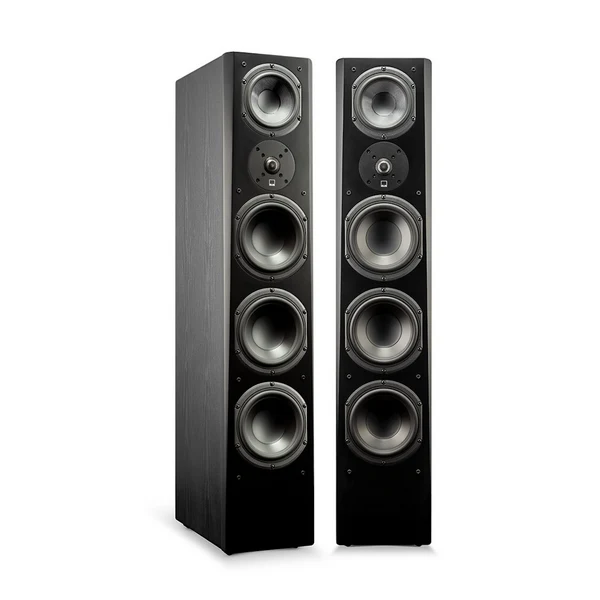

SVS Prime Pinnacle Floorstanding Speaker (Pair)- Black Ash
The SVS Prime Pinnacle Floorstanding Speaker delivers powerful bass, clear highs, and precise imaging. Its triple 6.5-inch woofers, 5.25-inch midrange, and 1-inch aluminum tweeter create a wide, detailed soundstage for high-end music and immersive home theater.
Technical Specifications:
- Product Type: 3-Way Floorstanding Tower Loudspeaker
- Tweeter: 1-inch aluminum dome
- Midrange: 5.25-inch composite glass-fiber cone
- Woofers: Triple 6.5-inch polypropylene cone
- Crossover: SVS SoundMatch 3-way
- Frequency Response: 29Hz–25kHz ±3dB
- Nominal Impedance: 8 ohms
- Sensitivity: 88dB
- Recommended Amplifier Power: 20–300W
- Ports: Triple 2-inch wide-flared rear-firing ports
- Overall Dimensions: 41.1″ H × 8″ W × 13.9″ D
- Weight: 57.1 lb / 25.9kg unboxed
- Finish Options: Premium Black Ash, Piano Gloss Black
₹340,000
Product Details
The SVS Prime Pinnacle Floorstanding Speaker combines refined detail with powerful, room-filling bass. Its triple 6.5-inch woofers deliver deep low frequencies, while the 5.25-inch midrange and 1-inch aluminum dome tweeter provide clear vocals and detailed highs.
In addition, the SoundMatch 3-way crossover creates precise imaging and a wide sweet spot. Three individually tuned rear ports further improve bass performance. Therefore, the Prime Pinnacle is an excellent choice for premium stereo music and immersive home theater systems.
Frequency Response / Acoustic Data:
- Rated bandwidth: 29 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-300 watts
Speaker Specs:
- Floor Standing Tower Loudspeaker
- Black ash and piano gloss black finish options

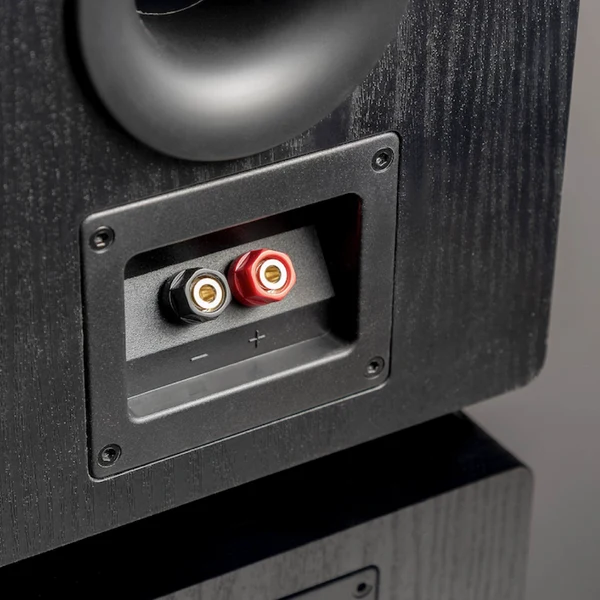

- 5-way binding posts
- Triple 2” wide-flared rear-firing ports
- Cloth grille with pin/cup retention system
- Cabinet Dimensions: 40.5" (H) X 8" (W) X 13.4" (D)
- Overall Dimensions: 41.1" (H) X 8" (W) X 13.9" (D) (includes grille, feet and binding posts)
- Shipped Dimensions: 46.5" (H) X 14.8" (W) X 19" (D)
- Weight Packaged: 66 lbs (29.9 kg)
- Weight Unboxed: 57.1 lbs (25.9 kg)
Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response

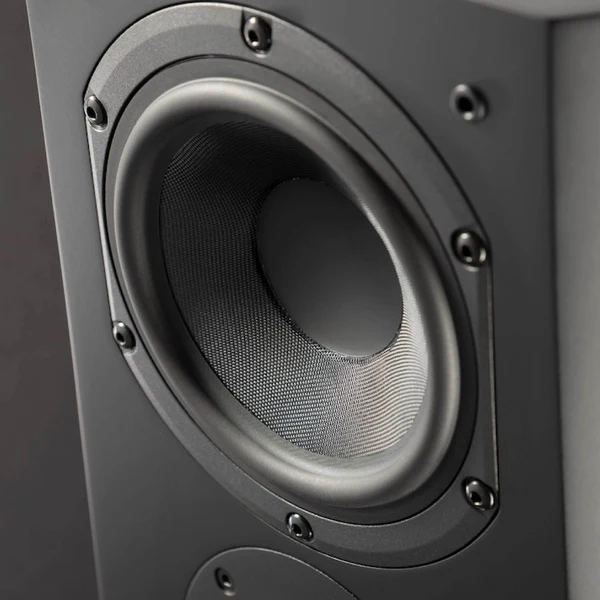

Triple 6.5” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
5.25” Midrange Driver:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- 2-piece PCB design reduces component interference
- Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes)
- Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes)
Cabinet:
- Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves beyond the driver pass band, improving sound quality
- Three separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
- Acoustically transparent and FEA optimized grilles minimize diffraction
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
- FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity for acoustically inert enclosure.
Additional information
| Condition | New |
|---|---|
| Finish | Black Ash |
