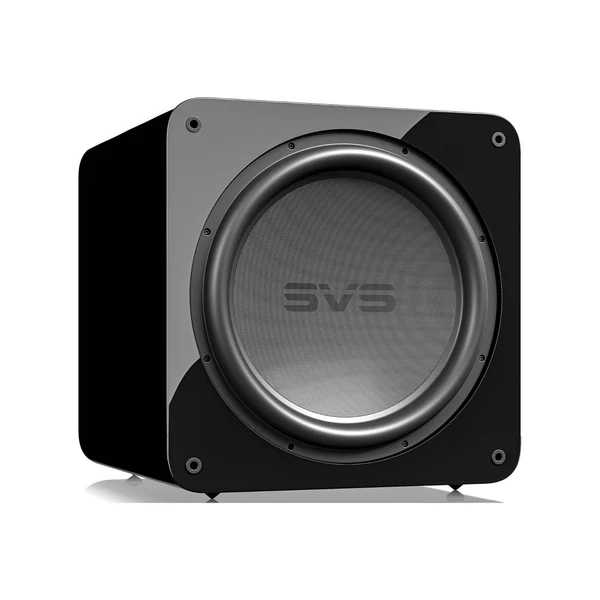

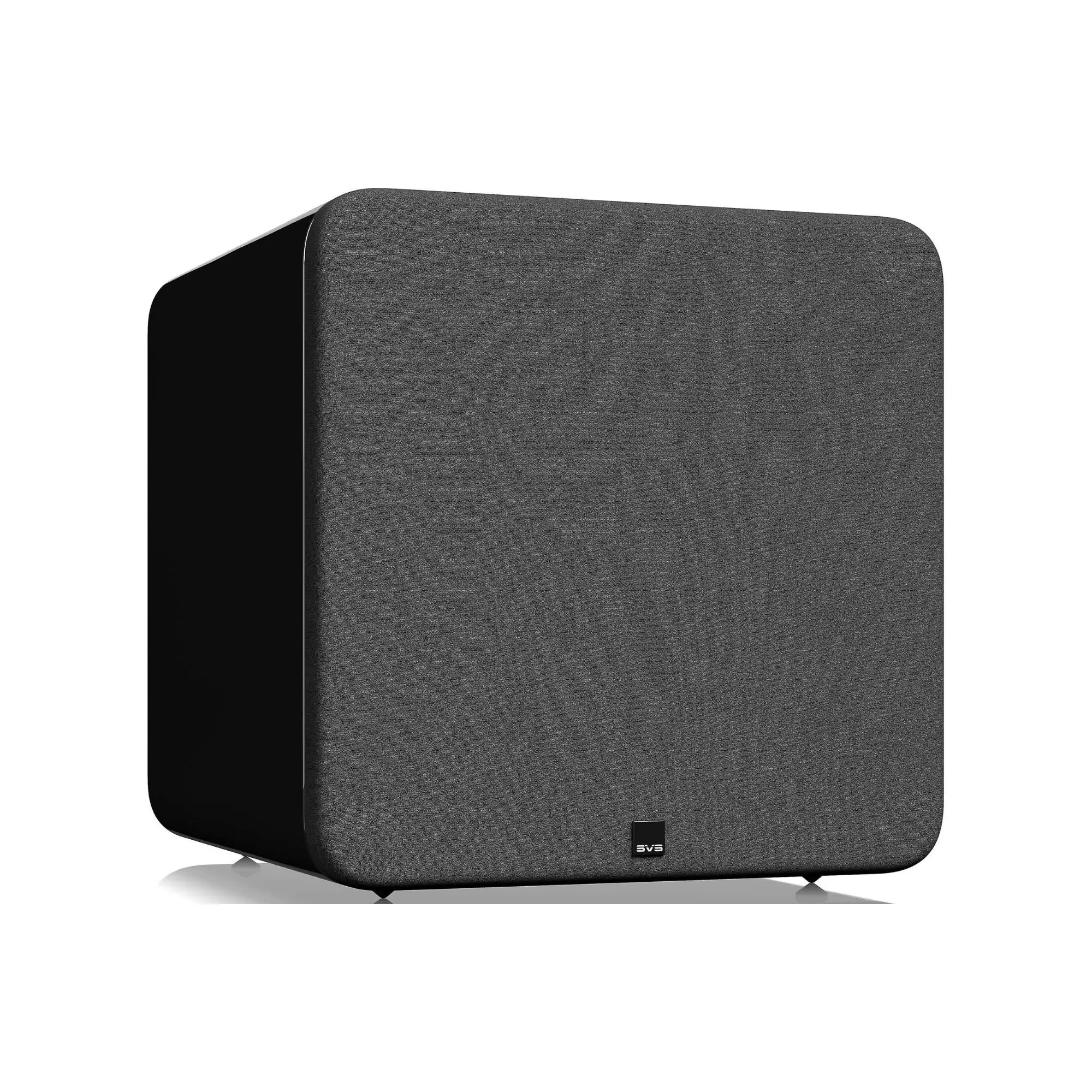

SVS SB17-Ultra R|Evolution
The SVS SB17-Ultra R|Evolution Subwoofer delivers reference-level bass with a massive 17-inch driver and 2,800W RMS dual-mono amplifier. Moreover, its sealed cabinet, 295MHz DSP, and Auto EQ provide deep 15Hz bass with exceptional control and precision.
Technical Specifications:
- Driver: 17-inch high-excursion SVS driver
- Voice Coils: Dual 8-inch voice coils
- Amplifier: Sledge STA-2800D dual-mono Class D
- Power: 2,800W RMS / 6,000+W peak
- Frequency Response: 15–320Hz ±3dB
- Enclosure: Sealed MDF cabinet with internal bracing
- Maximum Excursion: 48.9mm Xmax / 81.78mm Xmech
- DSP: 295MHz Analog Devices DSP with 56-bit filtering
- Dimensions: 20.0″ H × 19.5″ W × 21.2″ D with grille
- Weight: 124 lb / 56.25 kg
₹525,000
Product Details
The SVS SB17-Ultra R|Evolution Subwoofer delivers exceptional bass depth, power, and control. SVS SB17-Ultra sealed subwoofer 17-inch high-excursion driver uses dual 8-inch voice coils and a 2,800W RMS dual-mono amplifier to reach down to 15Hz. In addition, the 295MHz DSP provides advanced processing and precise power management.
SVS Auto EQ optimizes bass for your room, while the Subwoofer Control App provides convenient tuning. Therefore, it is an outstanding choice for reference-level home theater and high-end music systems.
SVS SB17-Ultra R|Evolution dual 8-inch voice coil subwoofer
Amplifier Specs:
- Sledge STA-2800D with 2800 watts RMS continuous power (6000+ watts peak dynamic power)
- Dual-mono discrete Class D amplifiers generate endless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency
- High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering. Over 5x the processing power of previous subwoofers, the most advanced subwoofer processor available for flawless low frequency audio reproduction
- Monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils
- DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity
- All new Switch Mode Power Supply (SMPS) includes a two-stage 100v-240v full range active Power Factor Correction (PFC) to pre-regulate mains to solid 390V DC regardless of mains voltage or quality. Ensures a consistent 160V rail voltage for dual-mono amplifiers over a wide-range of AC voltages
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality
- Pioneering convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks
- User auto EQ and DSP limiter settings specifically for the 17-Ultra allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass

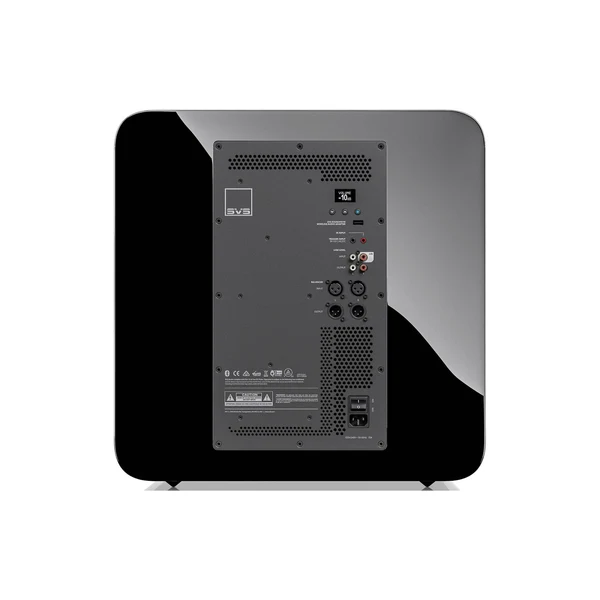

- XLR and RCA stereo input/output with ultra-wide input voltage bandwidth compliant with consumer and professional audio applications up to 4V line level input
- Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
- Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 14Vrms / +24dBu inputs) OLED and control interface with easy control of the most important features
- USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
- Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
- 3.5mm IR input for easy integration with control systems
- Green 0.5-watt low standby power consumption
- RoHS compliant, lead-free construction, world-wide safety certifications.
Additional information
| Condition | New |
|---|---|
| Finish | Piano Black – Gloss |
