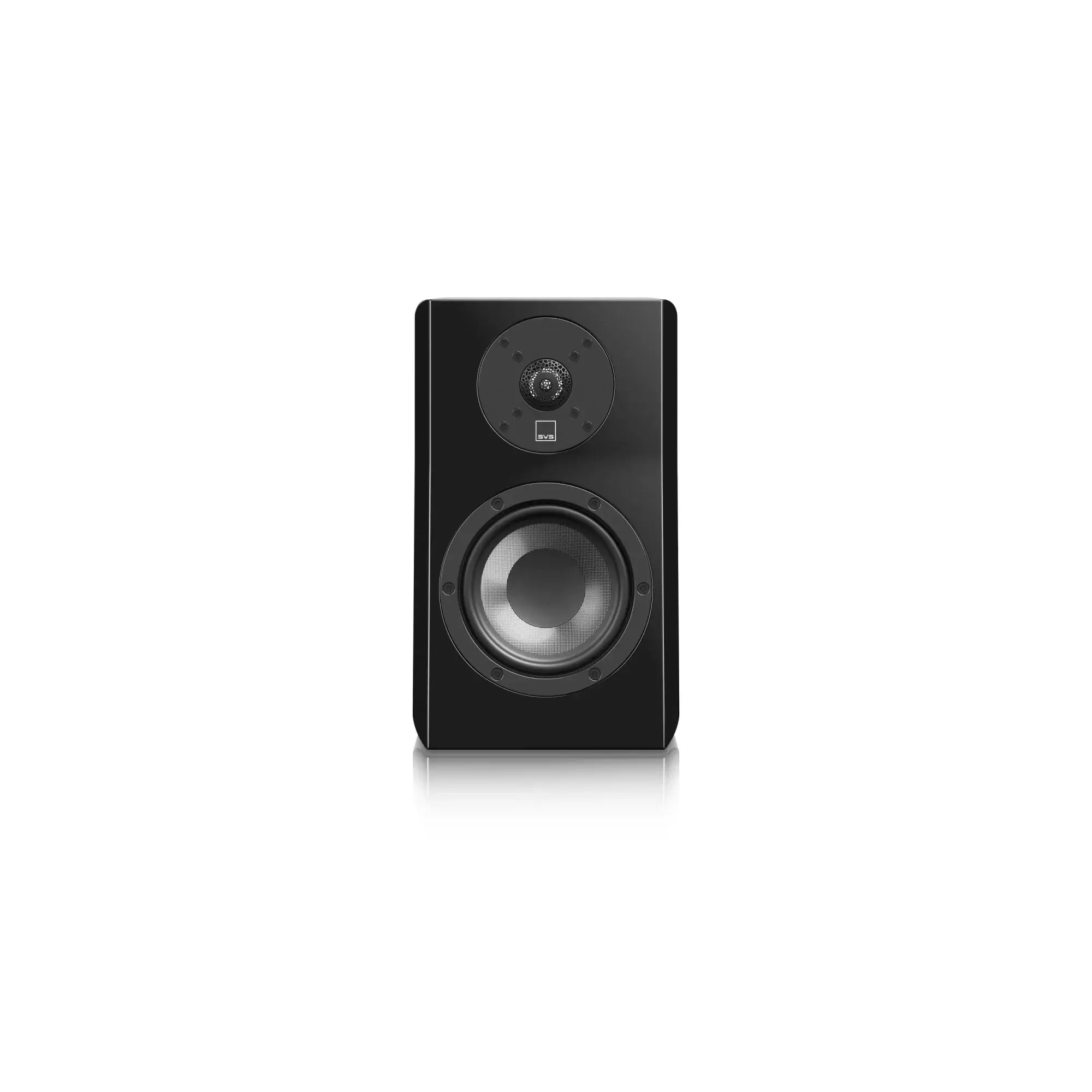

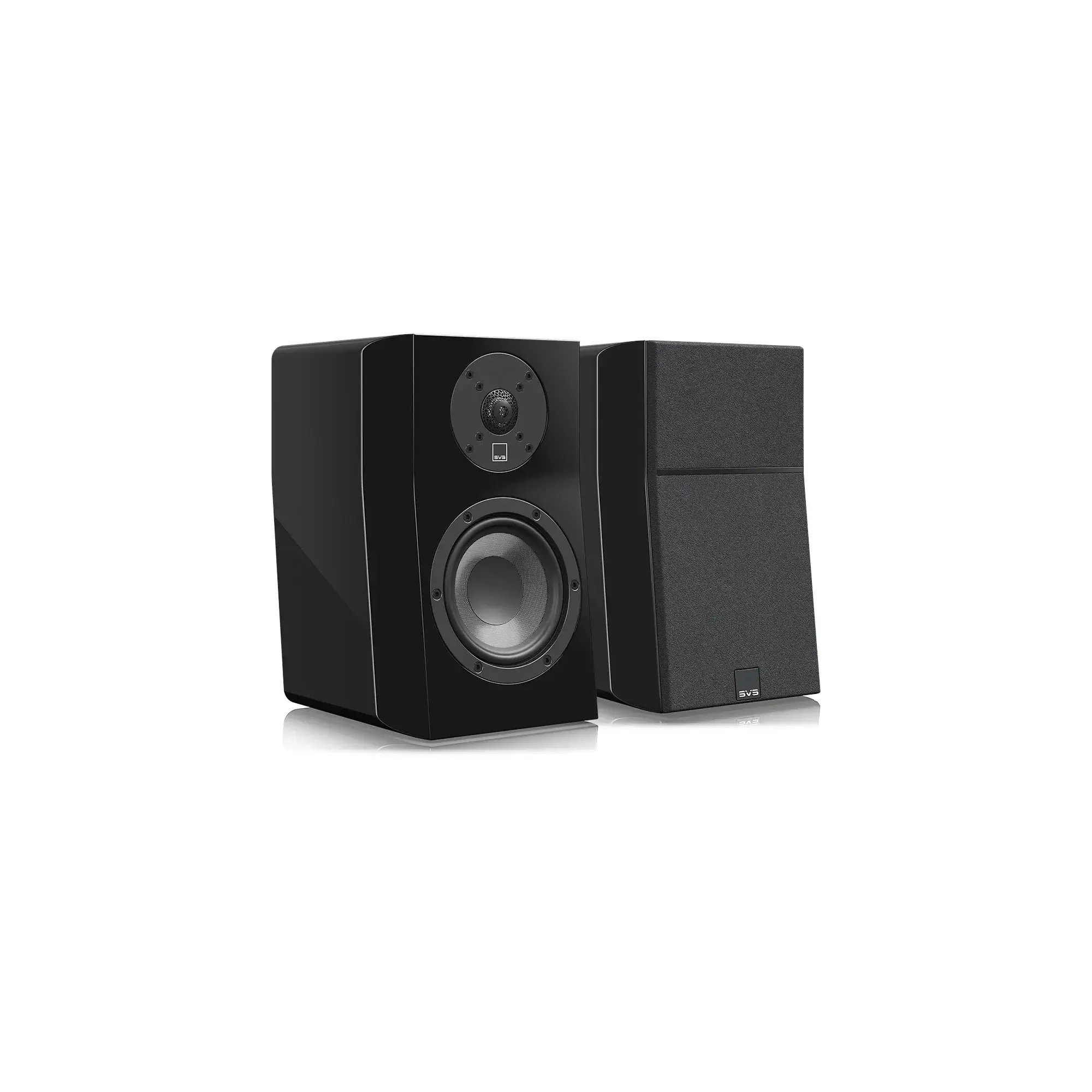

SVS Ultra Evolution Nano Bookshelf Speaker
The SVS Ultra Evolution Nano Bookshelf Speaker delivers detailed, immersive sound from a compact cabinet. Its diamond-coated tweeter and 5.25-inch glass-fiber woofer provide wide 40kHz response, strong bass, and precise imaging.
Technical Specifications:
- Speaker Type: 2-way bookshelf loudspeaker
- Tweeter: 1-inch diamond-coated aluminum dome
- Woofer: 5.25-inch glass-fiber composite mid-woofer
- Frequency Response: 44Hz–40kHz ±3dB
- Nominal Impedance: 6 ohms
- Sensitivity: 85dB
- Recommended Amplifier Power: 20–150W
- Crossover Frequency: 1.9kHz
- Port: 1.6-inch wide-flared rear-firing port
- Dimensions: 12.36″ H × 7.48″ W × 9.57″ D
- Weight: 13.5 lb / 6.1kg
- Finish Options: Piano Gloss Black
- Cabinet Design: Time-aligned geometry with chamfered front baffle
- Connectivity: Gold-plated 5-way binding posts
₹190,000
Product Details
The SVS Ultra Evolution Nano Bookshelf Speaker delivers detailed, dynamic sound in a compact design. Its 1-inch diamond-coated aluminum tweeter provides extended highs up to 40kHz, while the 5.25-inch glass-fiber composite mid-woofer delivers accurate bass and powerful dynamics.
In addition, time-aligned cabinet geometry improves imaging and phase coherence. The 2-way crossover and rigid, acoustically tuned cabinet further enhance clarity. Therefore, the SVS Ultra Evolution Nano is ideal for stereo music, small and medium rooms, front LCR channels, and home theater surround systems.
Frequency Response / Acoustic Data:
- Frequency Response: 44Hz to 40kHz (+/-3 dB)
- Nominal impedance: 6 ohms.
- Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 150 watts
Speaker Specs:
- Bookshelf Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Gold-plated 5-way binding posts

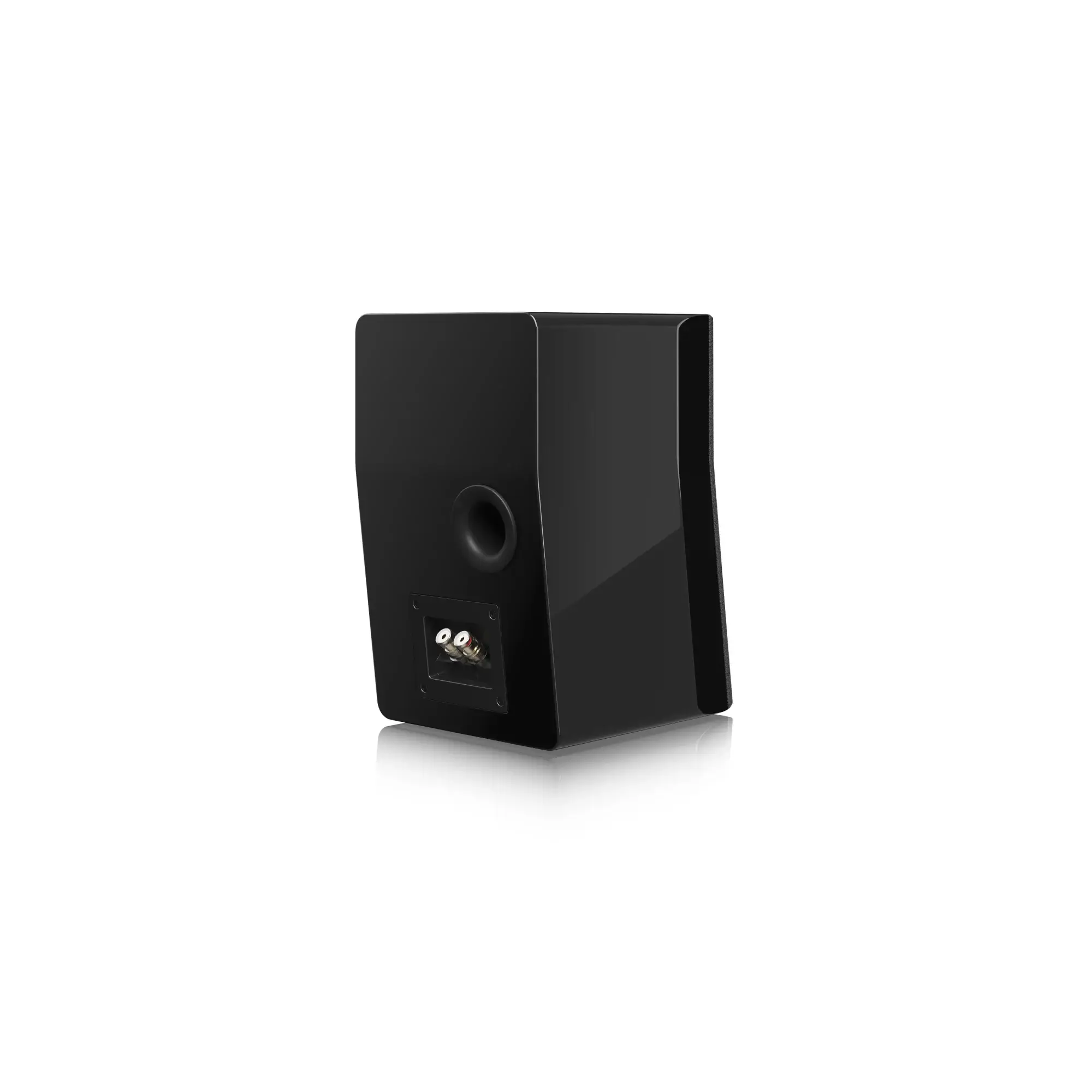

- 1.6” wide-flared rear-firing port
- Cloth grille with magnetic retention system
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 223.9mm (D)
- Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D)
- Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
- Weight Unboxed: 13.5 pounds / 6.1 kgs
- Shipped Weight: 31.0 pounds / 14.1 kgs
Driver Specs:
1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
5.25” Woofer:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Woofer crossover: 1.9 kHz
Cabinet:
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage..
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
- Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
Additional information
| Condition | New |
|---|---|
| Finish | Piano Black – Gloss |
