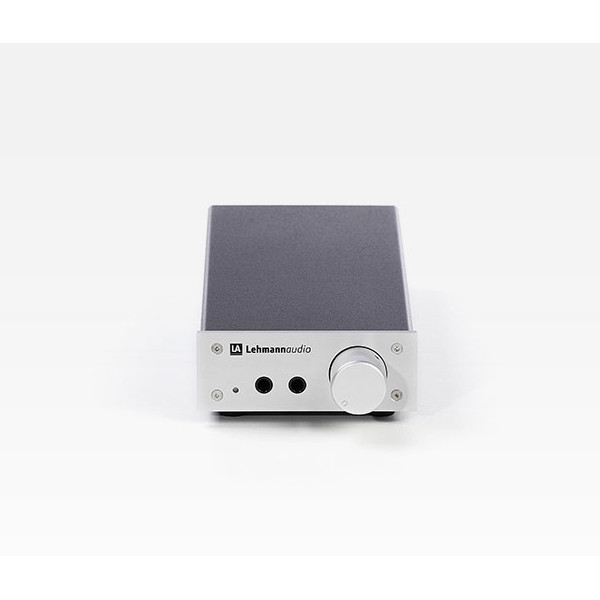

Lehmannaudio Linear Headphone Amplifier
The Lehmannaudio Linear Headphone Amplifier delivers reference-class analogue sound with a discrete Class A output stage. It offers selectable gain, dual headphone outputs, and 400 mW of power at 60 ohms for clear, detailed playback.
When you put on your headphones and load your favourite CD, the Linear will give rise to wonderful worlds before your mind’s eye. Physical, punchy lows and a delicate resolution reveal your favourite tracks in all their glory over the entire frequency bandwidth. Carefully selected components and an extremely sophisticated circuit design establish the foundation of our number on.
₹148,900
Product Details
The Lehmannaudio Linear Headphone Amplifier is a reference-class analogue amplifier built for serious headphone listening. Its discrete Class A solid-state output stage delivers clean, detailed sound with strong dynamics.
Moreover, selectable gain settings make it suitable for a wide range of headphones. Two parallel headphone outputs allow two listeners to enjoy music at the same time, while the pre-out lets the Linear connect to active speakers or another amplifier.
With 400 mW at 60 ohms and 200 mW at 300 ohms, it provides ample power for demanding headphones.
Technical Specifications:
- Type: Analogue headphone amplifier and preamplifier
- Input Impedance: 47 kΩ
- Gain Settings: 0 dB, 10 dB, 18 dB, 20 dB via DIP switches
- Frequency Response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
- Signal-to-Noise Ratio: >95 dB at 0 dB gain
- THD: <0.001% at 6 mW / 300 Ω
- Channel Separation: >70 dB at 10 kHz
- Output Power: 400 mW / 60 Ω; 200 mW / 300 Ω
- Output / Connections: 5 Ω headphone output; 50 Ω pre-out; 2 headphone outputs; gold-plated RCA inputs
- Dimensions / Weight: 110 × 280 × 50 mm; 1.5 kg
Additional information
| Condition | New |
|---|---|
| Finish | Black, Silver |
