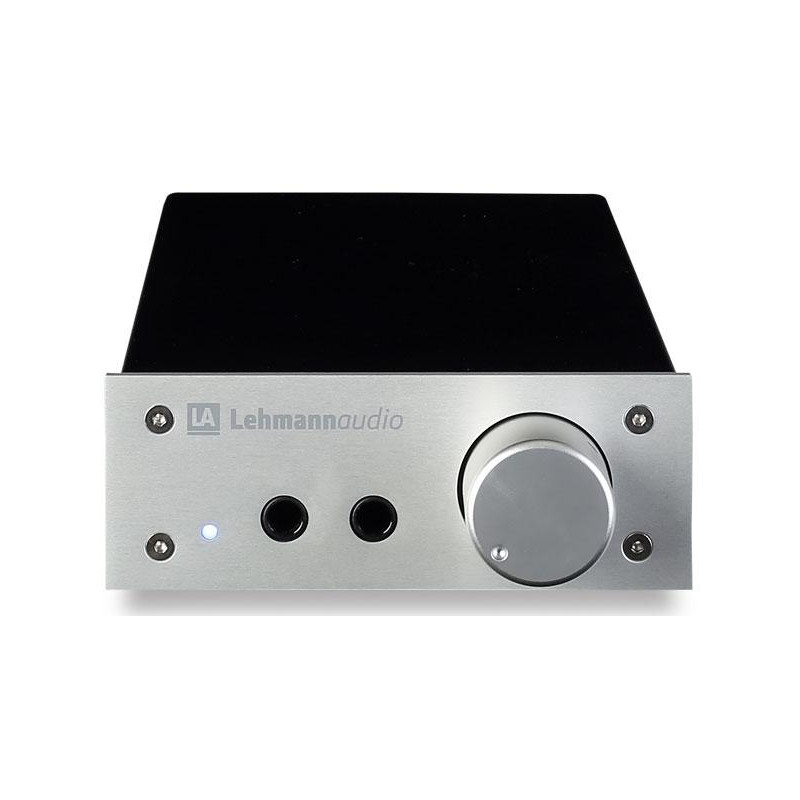

Lehmannaudio Linear USB II USB DAC Headphone Amplifier
The Lehmannaudio Linear USB II USB DAC Headphone Amplifier combines a Class A headphone stage with a high-resolution USB DAC. It supports up to 384kHz/32-bit audio, uses Low-Z Copper technology, and offers dual headphone outputs plus a preamp output.
On the subject of using different headphones, the final feature of the amplifier section is hidden underneath the Linear USB II, along with the trio of isolating feet. Four little DIP switches, two for each channel, are provided, and depending on their position the gain can be increased from unity (0dB) to +10, +18 or +20dB.
₹329,900
Product Details
The Lehmannaudio Linear USB II USB DAC Headphone Amplifier combines refined digital and analogue audio in a compact high-end design. Its ESS Sabre K2M DAC supports up to 384kHz/32-bit audio, while the discrete Class A output stage delivers clean, dynamic headphone performance.
Moreover, Low-Z Copper circuit-board technology improves the analogue stage. The unit also includes two Neutrik headphone outputs, an analogue input, and a pre-out for active speakers or a power amplifier. Automatic input selection makes switching between USB and analogue sources simple.
Technical Specifications:
- Type: USB DAC, Class A headphone amplifier and preamplifier
- Digital Input: 1 × USB-B
- DAC Chipset: ESS Sabre K2M
- Sampling Rate: Up to 384 kHz
- Resolution: Up to 32-bit
- Supported Formats: PCM, DoP 128, FLAC, MP3 and WAV
- Maximum Gain: 0 dB, 10 dB, 18 dB and 20 dB, selectable via DIP switches
- Output Power: 400 mW / 60 Ω; 200 mW / 300 Ω

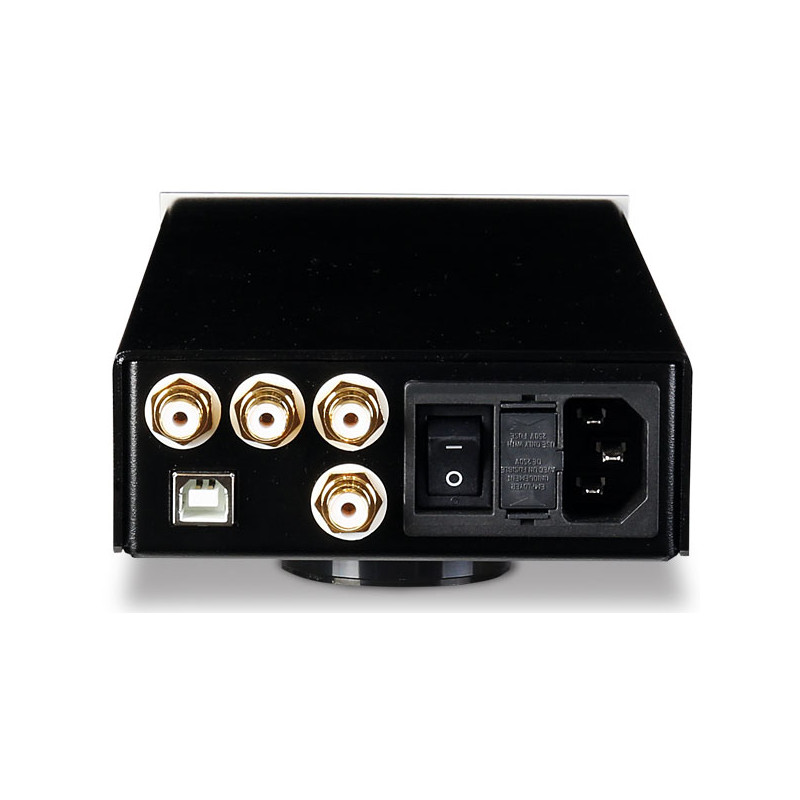

- Outputs: 2 × Neutrik headphone outputs; 1 × pre-out; gold-plated RCA sockets
- Dimensions / Weight: 110 × 280 × 44 mm; 1.5 kg
Additional information
| Condition | New |
|---|---|
| Finish | Black, Silver |
