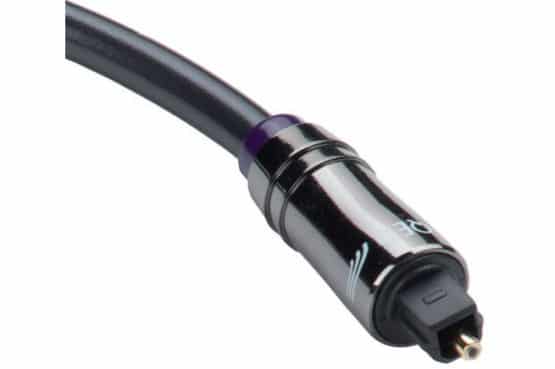

Description
FEATURES AND BENEFITS
POLYMETHYL METHACRYLATE (PMMA) ACRYLIC GLASS OPTICAL FIBRE
This new optical fibre boasts half the signal attenuation per metre of the previous Performance model, which means ‘Performance Graphite’ comfortably transmits the higher bandwidth signals for multi channel audio. For HD multi channel audio applications (over 12MHz) please see our Reference Optical Quartz cable
VERY LOW JITTER DESIGN
At QED we have identified jitter or distortions caused by errors in the light transmission as a major factor in the deterioration of the audio signal. By incorporating precision cladding techniques jitter is reduced enabling a cleaner signal with better dynamics and a wider sound stage.
VERY LOW LOSS
Very Low loss < 0.15dB attenuation per metre
SPECIFICATIONS
Plastic Optical Fibre (POF) core of acrylic glass
Stepped refractive index
Fluorinated Polymer Cladding Material
24K gold plated Toslink connectors
Precision engineered plug with
integrated grip
Attenuation ‹ 0.15dB/m (650nm)
Numerical Aperture 0.5
Minimum bend radius 9mm
QED Lifetime Guarantee
Length:- 1.5 Metre
