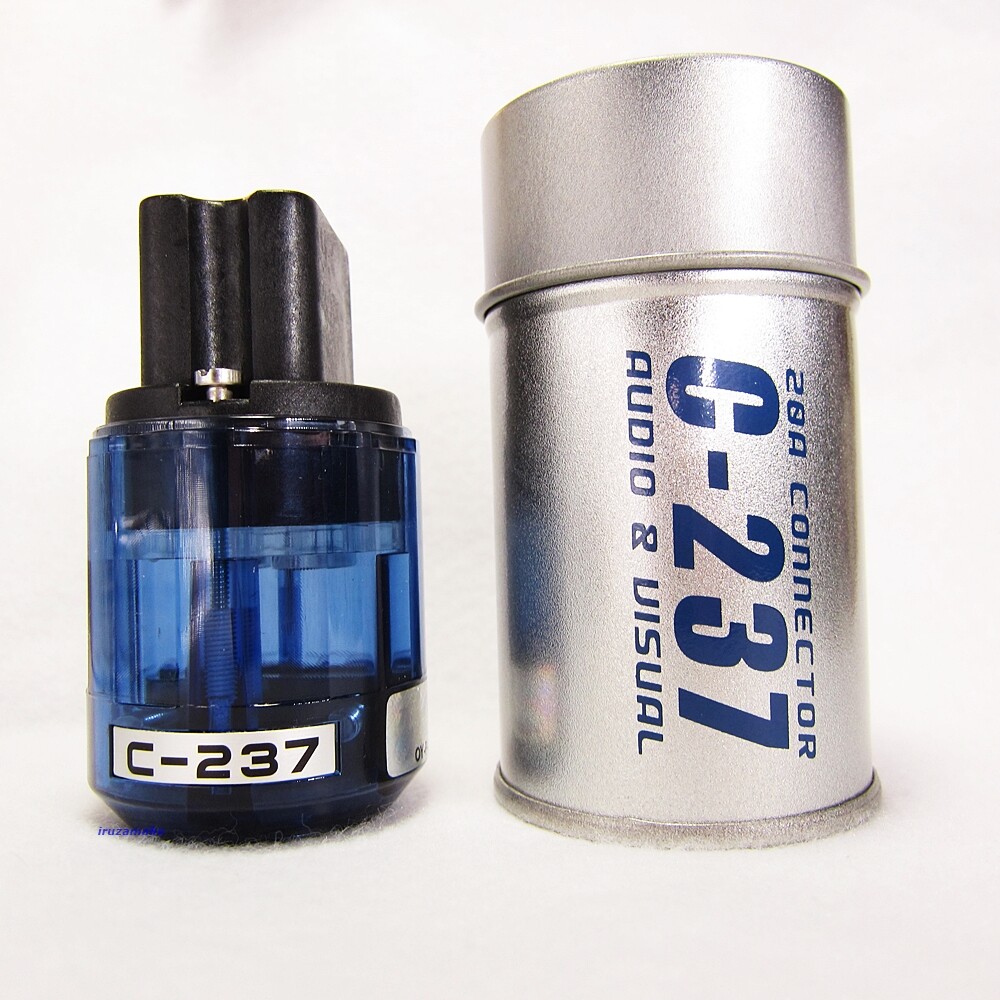

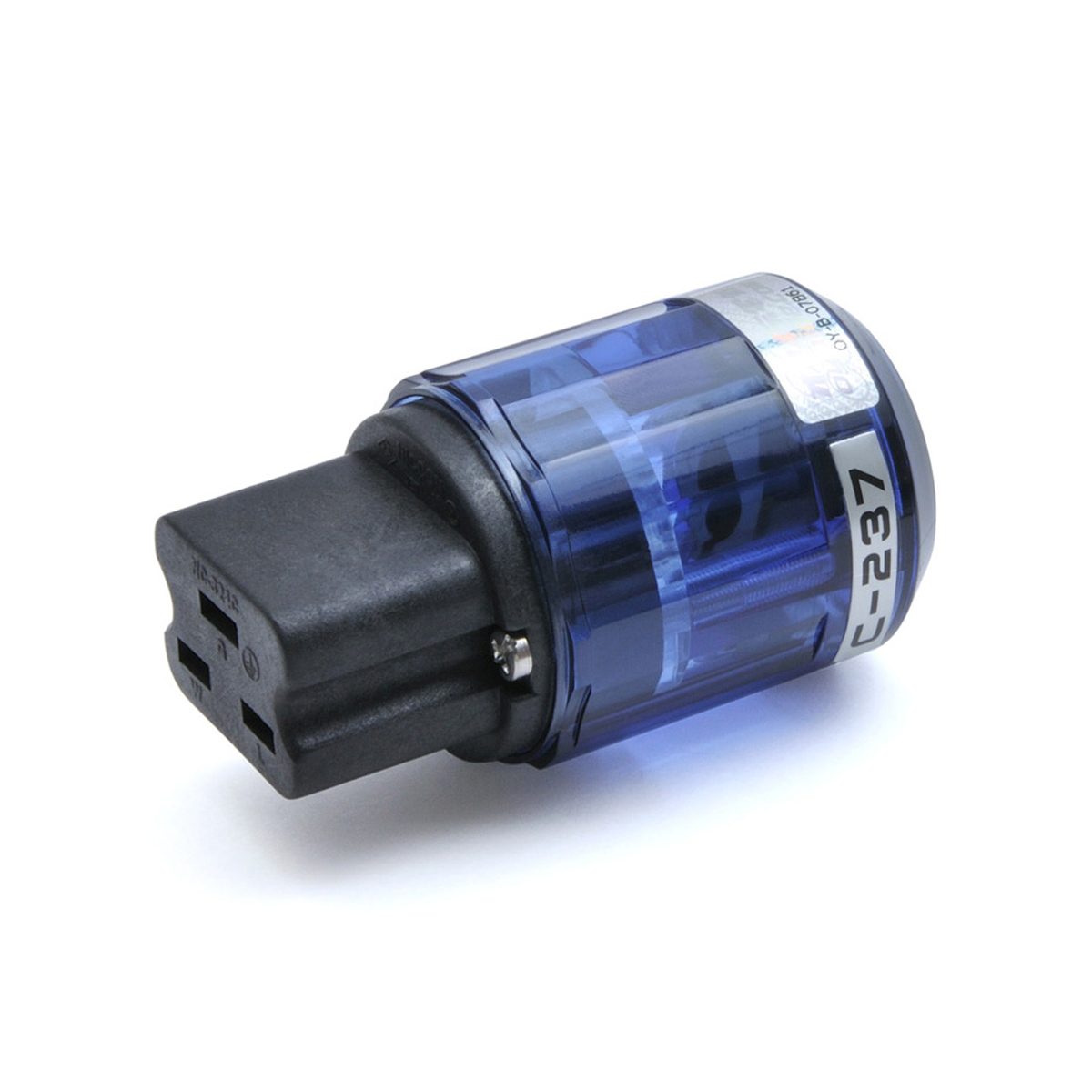

Oyaide C-237 IEC C19 Power Connector
The Oyaide C-237 IEC C19 Power Connector is a 20A connector with 1.4 mm phosphor bronze contacts, silver 1.5 μm + rhodium 0.3 μm plating, PBT + 30% glass fiber body, and polycarbonate cover.
Technical Specifications–
- Model: Oyaide C-237
- Connector Type: IEC-60320 C19
- Power Rating: 20A
- Contact Material: Phosphor bronze
- Contact Thickness: 1.4 mm
- Plating: Silver 1.5 μm + rhodium 0.3 μm
- Main Body: PBT + 30% glass fiber
- Outer Cover: High-rigidity polycarbonate
- Cable Diameter: 6.5–17.0 mm
- Rated Voltage/Current: 250V/20A PSE; 250V/16A CE
₹12,690
Product Details
The Oyaide C-237 IEC C19 Power Connector is designed for 20A power transmission in custom audio power cables. It uses 1.4 mm phosphor bronze contacts with silver 1.5 μm + rhodium 0.3 μm plating. The connector combines a PBT + 30% glass-fiber body with a rigid polycarbonate cover and supports 6.5–17 mm cable diameters and up to 5.5 sq mm / 10 AWG conductors. It is rated at 250V/20A PSE and 250V/16A CE.
FEATURES:
Contacts
The blade holder, which is in contact with the inlet, is made of 1.4mm-thick phosphor bronze. This provides a strong hold. The load weight is normally 3 to 5 kg, but the plug can be held with a force of 7 kg or more. This plug is hard to pull out and can be used with peace of mind, even with slight vibrations.
Plating
The process of making the "C-237/246/279" into the ultimate product begins with the surface preparation of the plating. Once punched as a part, the material is mechanically barrel polished and then buffed by hand, one by one. This two-stage polishing process is unique in its application to audio equipment. Mirror finish and direct plating. The simplicity of the product is the reason why it must be made to the highest standards. Oyaide's philosophy and craftsmanship are condensed here as well.
Oyaide's original combination plating, which has been established as the individuality of each product through repeated listening tests. In addition, the buffing and polishing process is used. These processes convey an emotion that has never been experienced before.
The plating of the C-19 series are:
C-237 - combination of silver (1.5micron) and rhodium (0.3 micron).
C-246 - combination of 24k gold (1.5micron) and palladium (0.3 micron).
C-279 - 24k gold （2.0μ)
Contact point capable of withstanding a pulling load of 30 kg
The tensile strength of the blade holder and cable is more than 30 kg, and even a slight pull will not cause the cable to come loose. This is also the result of careful consideration of safety.
PBT + 30%GF Body
The body is made of high specific gravity engineering plastic material (PBT + 30% GF), which has both excellent mechanical properties and electrical insulation properties. The highly rigid body realizes high-speed vibration damping.
Stainless screws
Furthermore, all screws are made of stainless steel and are completely original screws made exclusively for P/C. Highly rigid stainless steel screws will not cause problems such as over-torquing, crushing of threads, or removal of heads. The maximum cable installation size is 10sq (5.5sq x 2 cables), boasting outstanding workability. The tensile strength of the blade holder and cable is more than 30 kg, so even a slight pull will not cause the cable to come loose. This is also the result of careful consideration of safety aspects..
High rigidity polycarbonate outer cover
The outer cover is made of PC (Polycarbonate) for its rigidity and hardness. It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.
Additional information
| Condition | New |
|---|
Brand
Oyaide
