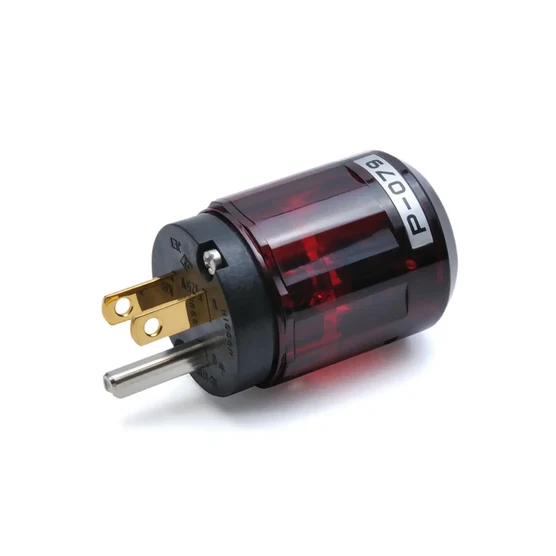

Oyaide P-079 Mains Power Connector
The Oyaide P-079 Mains Power Connector is a Made-in-Japan audio power plug with 24K gold plated phosphor bronze contacts. It features a rigid PBT body, polycarbonate cover and stainless steel screws. Moreover, it supports cables up to 10 AWG and is rated at 125V/15A.
Technical Specifications –
- Model: Oyaide P-079
- Product Type: Mains Power Connector / AC Power Plug
- Blade Material: Deoxidized phosphor bronze
- Blade Thickness: 1.4 mm
- Plating: Pure 24K gold
- Inner Body: 30% glass-filled PBT
- Outer Housing: Polycarbonate
- Cable Diameter: 6.5–17 mm
- Maximum Wire Size: 5.5 sq. mm / 10 AWG
- Rated Voltage/Current: 125V / 15A; PSE certified
₹12,090
Product Details
The Oyaide P-079 Mains Power Connector is a Made-in-Japan audio power plug designed for high-quality power cable builds. It uses 1.4 mm deoxidized phosphor bronze contacts with pure 24K gold plating. In addition, its 30% glass-filled PBT body provides strong insulation and rigidity.
The polycarbonate housing adds mechanical strength, while non-magnetic stainless steel screws support secure assembly. Furthermore, the P-079 accepts 6.5–17 mm cables and up to 10 AWG wire. It is rated at 125V/15A and is PSE certified.
FEATURES:
- Contacts
The basic material is 1.4mm thick deoxidized phosphor bronze for strength and secure contact. When connected, they can take over 7kg load. Surface is thoroughly polished twice. - Plating
The manufacturing process is started from foundation coating. The material which was punched out as a part is polished by hand piece by piece after machined barrel-polishing.The plating of the P-079/C-079 is 24k Gold.
Generally, 18k gold plating applied for industrial use is actually "gold alloy" due to enhancing its corrosion resistance property and durability. However, since we regard its sound quality as the most important priority factor, pure gold plating without nickel, cobalt and bismuth is selected for the plating of P-079/C-079.Grade Purity (content rate）
14K 54.2-62.5%
18K 70.9-79.2%
20K 79.3-87.5%
22K 87.6-95.9%
24K 95.9% or more
- Inner Body
30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body of the P-037/C-037 effectively attenuates high-speed vibrations. All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.Stainless Screws
The screws of P/C series are all made of highly rigid stainless so its screw head doesn't collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve high S/N ratio without being magnetized at its connection part.Outer Housing
The outer cover of P/C series is made of PC (Polycarbonate) for its rigidity and hardness. It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.
Additional information
| Condition | New |
|---|
Brand
Oyaide
