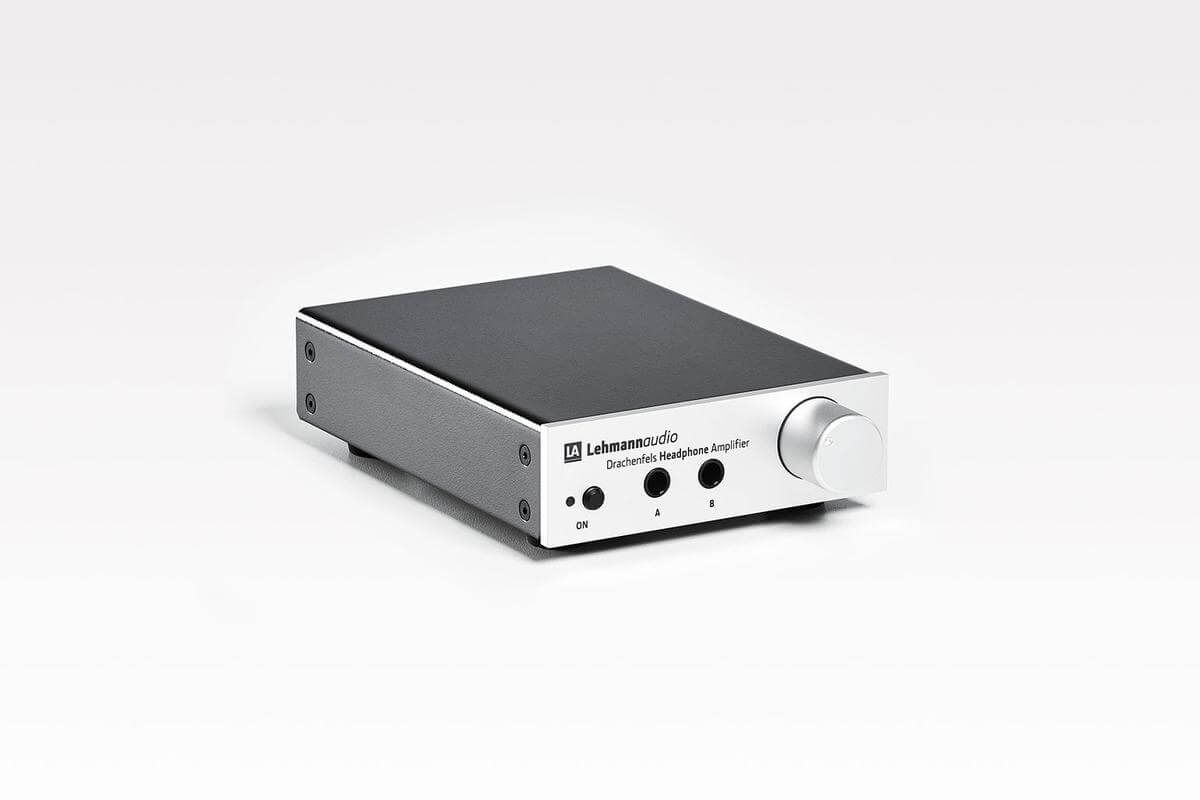

Lehmannaudio Drachenfels D Digital Headphone Amplifier
The Drachenfels D complements the detailed, light-footed sound of the analogue model by a digital-analogue converter of the latest generation. The Sabre DAC from ESS on the quad-layer circuit board, which is optimised against RF interference, offers both digital S/PDIF and TOSLINK inputs.
Low-loss mica caps on the mainboard and in the analogue filter of the converter as well as ultra fast amplifier stages on the converter board guarantee reference quality in transient reproduction. Enjoy your digital musical treasures from a streamer or CD player in full Lehmannaudio quality!
₹164,900
Product Details
The Lehmannaudio Drachenfels D Digital Headphone Amplifier adds an ESS Sabre DAC to Lehmannaudio’s proven headphone amplifier design. It supports S/PDIF and TOSLINK digital sources, making it ideal for streamers and CD players.
Moreover, its RF-optimised circuit board, low-loss mica capacitors, and fast amplifier stages support clear and detailed sound. With 110 mW at 330 Ω, 180 mW at 33 Ω, dual headphone outputs, and a pre-out, the Drachenfels D works as both a high-quality headphone amp and a compact preamp.
Colour/Finish: Silver/ Black
Technical Specifications-
- Type: Digital headphone amplifier and preamplifier
- DAC: ESS Sabre DAC with RF-optimised quad-layer circuit board
- Digital Inputs: S/PDIF and TOSLINK
- Input Impedance: 47 kΩ
- Maximum Gain: 12 dB
- Frequency Response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
- Signal-to-Noise Ratio: >85 dB at 0 dB gain
- THD: <0.006% at 18 mW / 330 Ω
- Output Power: 110 mW / 330 Ω; 180 mW / 33 Ω
- Dimensions / Weight: 160 × 120 × 43 mm; 0.5 kg
Additional information
| Condition | New |
|---|
