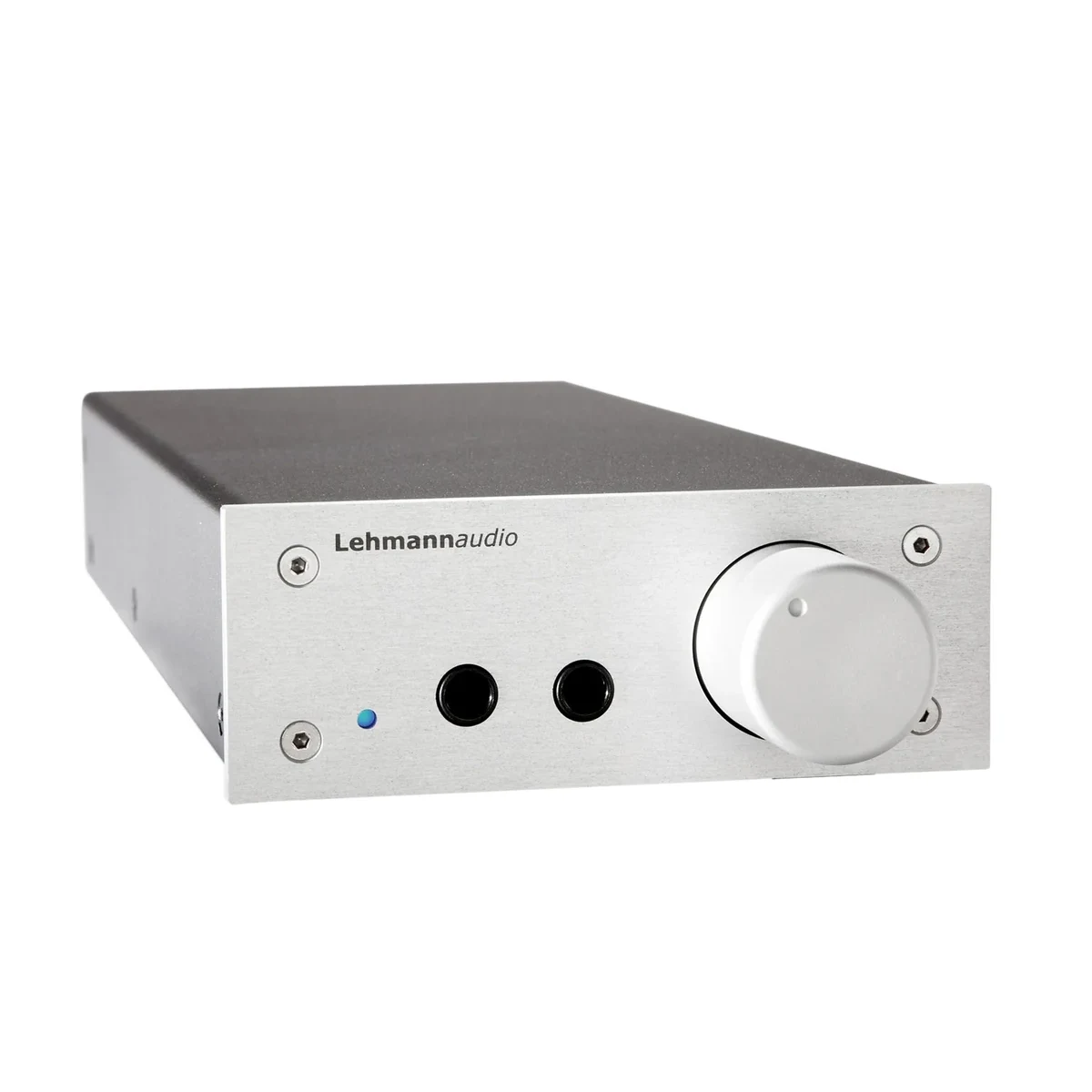

Lehmann Audio Linear II Digital Second Generation Legend
The Lehmannaudio Linear II Headphone Amplifier is a high-end analogue Class A amplifier designed for detailed and dynamic headphone listening. Its Low-Z copper circuit board works with Mundorf capacitors to support fast transient response and spacious imaging.
Moreover, the 3S device feet help reduce unwanted vibration. Four selectable gain settings make the Linear II flexible with different headphones. Two Neutrik headphone outputs allow shared listening, while the pre-out lets it connect to active speakers or a power amplifier.
₹329,900
Product Details
Since 2004, the Linear has been bringing out the absolute best in all common headphones. The most discerning users trust this top-of-the-line model, from West German Broadcasting (WDR) and the audiophile label TACET to headphone specialists Sennheiser and AKG. It's no wonder the Linear is considered a reference-class headphone in its category.
When you put on the headphones and insert your favorite CD, the Linear conjures up wonderful worlds in your mind's eye. Physical, rich bass and delicate resolution unfold your favorite tracks in all their glory across the entire frequency spectrum. Carefully selected components and an exceptionally sophisticated circuit design form the foundation of this top performer.
The Lehmannaudio Linear II Headphone Amplifier combines a discrete Class A output stage with Low-Z copper technology, Mundorf capacitors, and 3S feet. It delivers 400 mW at 60 ohms, selectable gain, two headphone outputs, and a pre-out for high-end listening.
Technical Specifications:
- Type: Analogue Class A headphone amplifier and preamplifier
- Input Impedance: 47 kΩ
- Maximum Gain: 0 dB, 10 dB, 18 dB, 20 dB, selectable via DIP switches
- Frequency Response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
- Signal-to-Noise Ratio: >100 dB at 0 dB gain
- THD: <0.001% at 6 mW / 300 Ω
- Channel Separation: >70 dB at 10 kHz
- Output Power: 400 mW / 60 Ω; 200 mW / 300 Ω
- Connections: 2 × Neutrik headphone outputs, 1 × pre-out, gold-plated RCA inputs
- Dimensions / Weight: 110 × 280 × 50 mm; 1.5 kg
Additional information
| Condition | New |
|---|---|
| Finish | Black, Silver |
