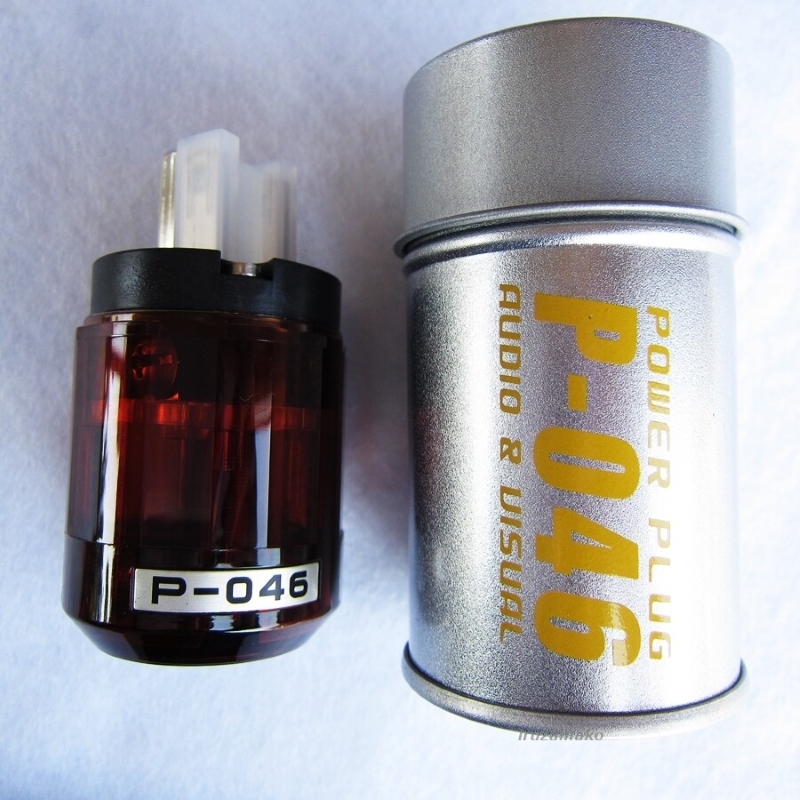

Oyaide P-046 Mains Power Connector

Every one of our products are totally “made in Japan” even down to minute component, all because for us to maintain our high standard of quality and reliability, it is essential to have every production system under our direct and strict control. Our products are for special market where minute vibration from loose connection or due to imperfect choice of material could become a vital failure.

We carefully design each and every component for easiness in assembling, simplicity and requirement, cost factor is secondary. Instead we ignore excess decoration and unnecessary complexity. We are proud to present the true value for your enjoyment. These plugs and connectors are not merely high grade; every step is taken to realize the `State of the Art` for audio application.

₹12,990

Product Details

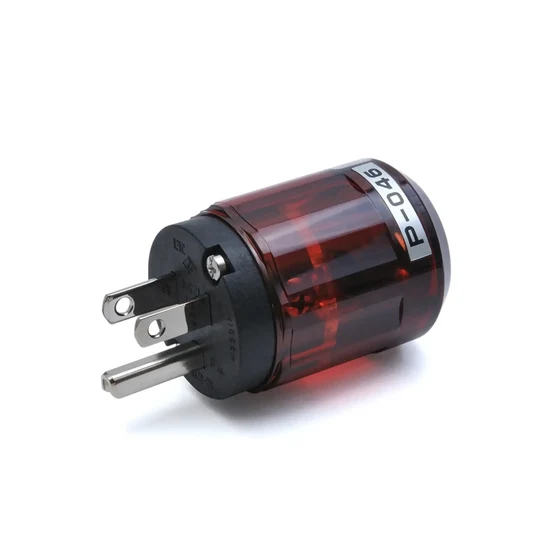

The Oyaide P-046 Mains Power Connector is a Made-in-Japan audio power plug designed for high-quality power cable builds. It uses 1.4 mm deoxidized phosphor bronze contacts with 24K gold and palladium plating. In addition, the 30% glass-filled PBT body provides strong insulation and rigidity.

The polycarbonate outer housing adds mechanical strength, while stainless steel screws support secure assembly. Furthermore, the P-046 accepts 6.5–17 mm cable diameters and up to 10 AWG wire. It is rated at 125V/15A.



Technical Specifications —

  1. Model: Oyaide P-046
  2. Product Type: Mains Power Connector / AC Power Plug
  3. Blade Material: Deoxidized phosphor bronze
  4. Blade Thickness: 1.4 mm
  5. Plating: 24K gold + palladium
  6. Gold Plating Thickness: 1.5 microns
  7. Palladium Plating Thickness: 0.3 microns
  8. Body Material: 30% glass-filled PBT
  9. Cable Diameter: 6.5–17 mm
  10. Rated Voltage/Current: 125V / 15A; supports up to 10 AWG cable

Additional information

Condition

New

Brand

Oyaide
